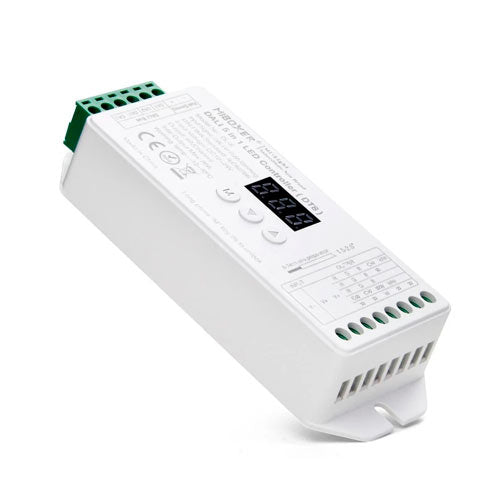

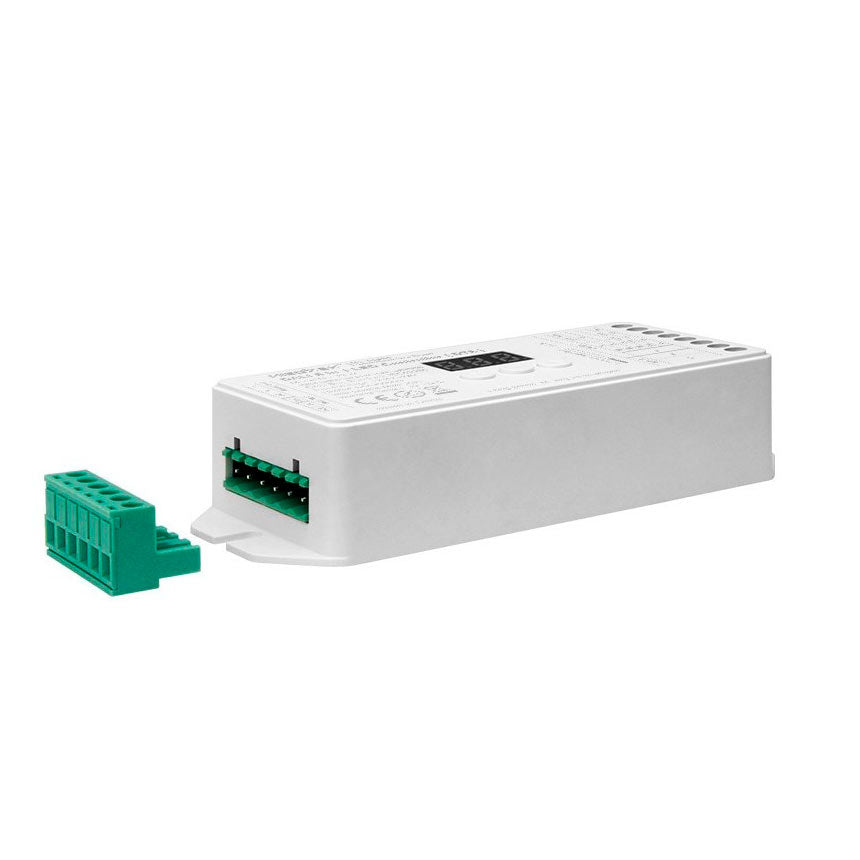

DALI dimmer with five channels (5x6A) for single-colour LEDs, CCT tunable white, RGB and RGBW and RGB+CCT LED-for tapes and compatible LED-luminaires. All channels operate from either a single or separate 2-5 DALI address, which can be set manually or automatically from the Master device of your choice. DALI Slave device compatible with standard DALI system devices. See the wiring diagram here.

DT8 DALI LED-controller, five channels 5x6A max. 20A for all types LED-for all types of tapes

12-24V constant voltage DALI LED-controller (Slave) with 5 channels x 6A, operating with the same or separate 1-5 DALI addresses, you can choose the number of addresses of the channels. The controller complies with the standard DALI protocol and 5 DALI addresses to control 5 different channels. The Master controller automatically assigns a DALI address to this DALI Slave device or you can manually set the DALI address. 1-5 DALI addresses are available for channels of your choice. 0% -100% uniform dimming with DALI dimmer via logarithmic dimming.

DALI dimmer features

• DALI DT8 certified
• UL, TUV CE certified
• For single-colour LEDs, such as LED-tapes and compatible LED-lamps
• constant voltage DALI LED-dimmer with 5 channels x 6A: 12VDC, 24VDC
• 5 x 6A depending on voltage
• Complies with DALI standard protocol IEC 62386-102, IEC 62386-207 and other international regulations for DALI products.
• The master controller automatically assigns the DALI address or you can set the addresses manually.
• 1-5 DALI addresses, 5 channels operate with the same address, or individually or in groups of two.
• 0% -100% dimming range.
• Operates from LED-with DALI lighting system.

The DALI receiver is installed between the power supply and the LED-tape, i.e. control is from the secondary side. The power supply does not therefore need to be DALI dimmable. Operating distance max. 20m. Wide adjustment range of light output 0.1%-100%.

Power max. 5 x 6A or total max 20A

DALI dimmers and DALI controllers can control multiple zones or groups and store different lighting situations. Our DALI controllers, which follow the standard DALI protocol, are compatible with DALI products from other international companies.

A single receiver can be controlled by several buttons (max. 8 buttons), if you want to control the light from both doorways of a room.

The controller offers smooth brightness dimming control. Built-in dimming patterns are available and will be saved even if the lights are switched off or a power failure cuts the power.

Operating voltage: 12-24V DC.

Power: max. 4 x 6A, max 20A.

Operating temperature: -20°C ...+50°C

Protection class: IP20

Dimensions: 130 x 49 x 27mm

3 years warranty

130 x 130 x 1 year, controlled for example by DALi controller or push dim controller.
