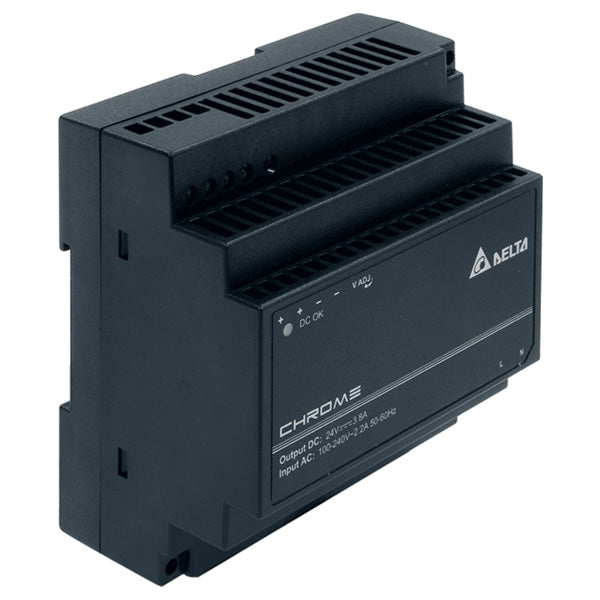

100W 24V DIN rail power supply
- Only 7 left in stock! - Products available with fast 1-3 days delivery. These products can be ordered with fast 1-3 days delivery. If you buy more products than we have in stock, the estimated delivery time will be backorder The estimated delivery time for products is approximately 2-4 weeks. - This product is currently out of stock and not available for order. You can ask our customer service by email what timeframe would be available in the future. - The product is currently not immediately available from our stock, but you can place an order and we will deliver the product to you as soon as it arrives. Estimated delivery time backorder The estimated delivery time for products is approximately 2-4 weeks.
Couldn't load pickup availability
SKU (product number):
SKU:DRC-24V100W1AZ
-
Features
- Protection class II, double insulation
(does not require earthing)
- Universal AC input voltage and full power up to 55°C
- No current discharge over the entire input voltage range
- Up to 89.0% power @ 230Vac
- NEC Class 2/Limited Power Supply (LPS) certified
- Overvoltage / Overcurrent protection / Thermal protection

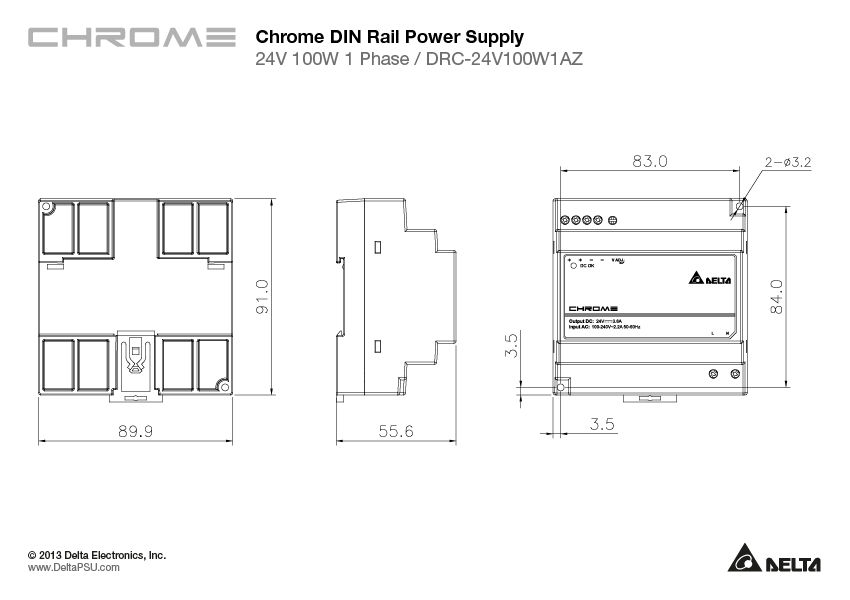

Dimensions (L x H x P): 91 x 89.9 x 55.6 mm 3.58" x 3.54" x 2.19" Unit weight : 0.35 kg Rated output voltage24VOutput voltage control range22-24VdcOutput current3.8AOutput power91WLine setting<1% typ. (@ 90-264Vac, 100% load)Load setting<2% typ. (@ 90-264Vac, 100% load)PARD (20MHz)<50mVpp / 150mVppStart-up time<3 000 ms @ nimellinen tulo (100% kuormitus)Pitoaika> 10ms @ 115Vac (100% load)> 30ms @ 230Vac (100% load)
Dynamic response (Overshoot & Undershoot O/P voltage)± 5% @ 10-100% loadStarting at capacitive loads3 000 μF maxRise time<100 ms @ nominal input (100% load)Rated input voltage100-240Input voltage range90-264Vac 125-375VdcNominal input frequency50-60HzInput frequency range47-63HzNominal DC supply voltage125-250VdcDC input voltage range125-375VdcInput current<2.20A @ 115Vac, <1,00A @ 230VacTehokkuus 100%: n kuormituksella> 87.0% @ 115Vac,> 89.0% @ 230VacMaximum current flow<30A @ 115Vac, <60A @ 230VacLeakage current<0,25mA @ 240VacYmpäröivä ilman lämpötila toimii-25 ° C ... + 71 ° CYmpäröivä ilman lämpötila-25 ° C - + 85 ° CPower De-rating> 55°C de-rate power 2.5%/°COperating humidity5 - 95% RH (non-condensing)Shock (action)IEC 60068-2-27, Half Sine Wave: 4G duration 22 ms, 3 shocks in each of 3 directions, 9 times in totalVibration (action)IEC 60068-2-6, Sine Wave: 10-500 Hz @ 19.6 m/s? (2G peak); 10 min/cycle, 60 min in all X, Y and Z directionsOperating altitude0-2 000 meters (6560 feet)Degree of contamination2 - Protection class II, double insulation
