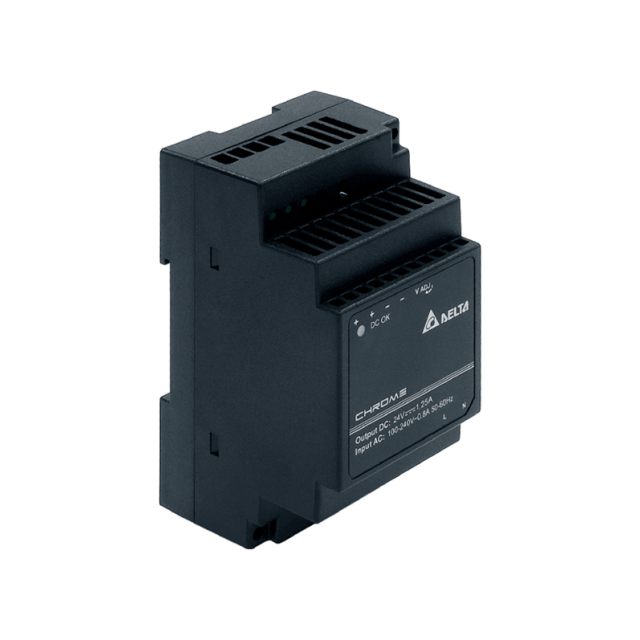

DRC-24V30W1AZ

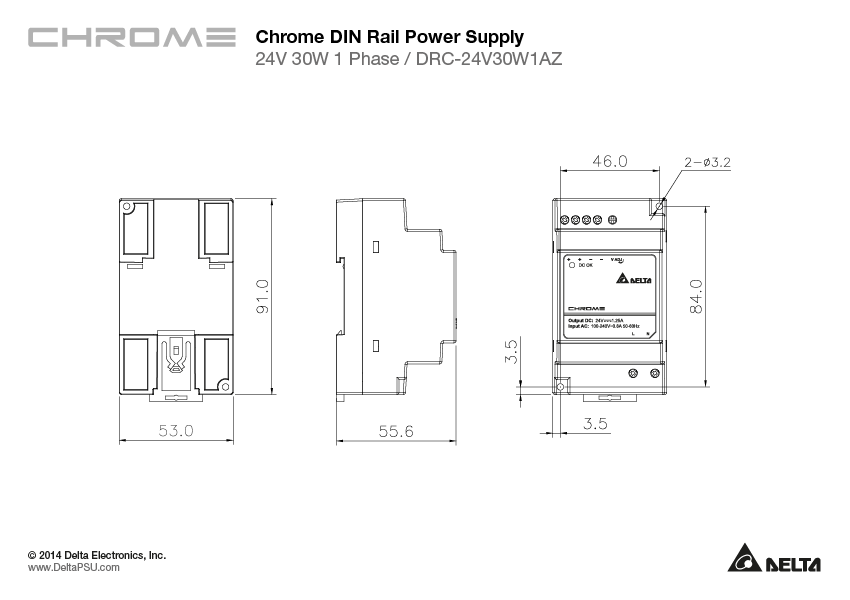

Mechanical_Drawing_drc-24v30w1az

30W 24V DIN rail power supply

€35,90 EUR
€35,90 EUR
Tax included. Shipping calculated at checkout.
  • Only 6 left in stock! - Products available with fast 1-3 days delivery. These products can be ordered with fast 1-3 days delivery. If you buy more products than we have in stock, the estimated delivery time will be backorder The estimated delivery time for products is approximately 2-4 weeks. - This product is currently out of stock and not available for order. You can ask our customer service by email what timeframe would be available in the future. - The product is currently not immediately available from our stock, but you can place an order and we will deliver the product to you as soon as it arrives. Estimated delivery time backorder The estimated delivery time for products is approximately 2-4 weeks.
  • Inventory on the way

SKU (product number):

DRC-24V30W1AZ

DIN-rail mountable power supply 24V 30W

    • Protection class II, double insulation (no earth connection required)

    • Universal AC input voltage and full power up to 55°C

    • No current discharge over the entire input voltage range

    • Efficiency > 87.0% @ 115Vac and 230Vac

    • NEC Class 2/Limited Power Supply (LPS) certified

    • Overvoltage / Overcurrent protection / Over temperature protection

    Rated output voltage

    24V

    Output voltage control range

    23.52-24.48Vdc

    Output current

    1.25A

    Output power

    30W

    Line setting

    <1% typ. (@ 90-264Vac, 100% load)

    Load setting

    <2% typ. (@ 90-264Vac, 100% load)

    PARD (20MHz)

    150mVpp

    Start-up time

    <3 000 ms @ nimellinen tulo (100% kuormitus)

    Pitoaika

    > 25ms @ 115Vac,

    > 30ms @ 230Vac (100% load)

    Dynamic response (Overshoot & Undershoot O/P voltage)

    ± 5% @ 10-100% load

    Starting at capacitive loads

    3 000 μF max

    Rise time

    <100 ms @ nominal input (100% load)

    Rated input voltage

    100-240

    Input voltage range

    90-264Vac 125-375Vdc

    Nominal input frequency

    50-60Hz

    Input frequency range

    47-63Hz

    DC input voltage range

    125-375Vdc

    Input current

    <0.80A @ 115Vac,

    <0,60A @ 230Vac

    Tehokkuus 100%: n kuormituksella

    > 87.0% @ 115Vac and 230Vac

    Maximum current flow

    <25A @ 115Vac, <50A @ 230Vac

    Leakage current

    <0,25mA @ 240Vac

    Ympäröivä ilman lämpötila toimii

    -25 ° C ... + 71 ° C

    Ympäröivä ilman lämpötila

    -25 ° C - + 85 ° C

    Power De-rating

    > 55°C de-rate power 2.5%/°C

    Operating humidity

    5 - 95% RH (non-condensing)

    Shock (action)

    IEC 60068-2-27, Half Sine Wave: 4G duration 22 ms, 3 shocks in each of 3 directions, 9 times in total

    Vibration (action)

    IEC 60068-2-6, Sine Wave: 10-500 Hz @ 19.6 m/s? (2G peak); 10 min/cycle, 60 min in all X, Y and Z directions

    Operating altitude

    0-2 000 m

    Degree of contamination

    2

    overvoltage

    <34,8V, SELV output, locking mode

    Overload/overcurrent

    > 130% of rated load current, nervous mode, non-latching (automatic reset when fault cleared)

    Over temperature

    > 75°C Ambient air temperature @ 100% load, lockout mode

    Short circuit

    Silent mode, no lockout (automatic reset when fault is cleared)

    Protection level

    IP20

    Protection against shocks

    Class II (no primary earthing required)
