RF WiFi RGB & RGBW remote control 4-channel.

4-channel dimmer/remote control that lets you control RGB and RGBW LED-tapes. The dimmer is compatible with all our RF WiFi products, you will also need a receiver, i.e. a 4-channel receiver model.

RF WiFi wireless LED-remote control, RGB & RGBW and dimming with four channels

4-channel remote control for control RGB and RGBW adjustable LED-tapes. Channels can be controlled together or separately - press 1 and 4 on the remote to control both 1 and 4 channels at the same time.

One of the four channels can also be controlled separately if you wish White strip RGB-tape, which can be controlled separately in W mode.

An unlimited number of receivers can be paired for each channel. Each channel can have one Master Receiver. Set the first receiver to master mode, the others to slave mode. This way you can get all controllers to work in sync.

This wireless remote control is compatible with the RF WiFi series of receivers, receivers can be paired to control different channels of this remote control, either one or several. In addition, you can control the colour temperature control and dimming via the wall controllers and WiFi system (requires RF WiFi hood) from a tablet or phone.

Connecting the receiver to work with a remote control or button:

• Connect to LED strip Connect the receiver to
• Turn on the button/roll control by removing the protection between the radiator and the button/roll control, then it will start working
• Activate the button/roll control by pressing the ON button and press the receiver's Learning key-button on the receiver. Immediately afterwards, press one of the channel (1-4) buttons or the button of the button selector on the reel switch
• The connection is complete when LEDthe :s flash

One receiver can be controlled by more than one button (max. 8 buttons), if you want to control the light from both doorways of a room.

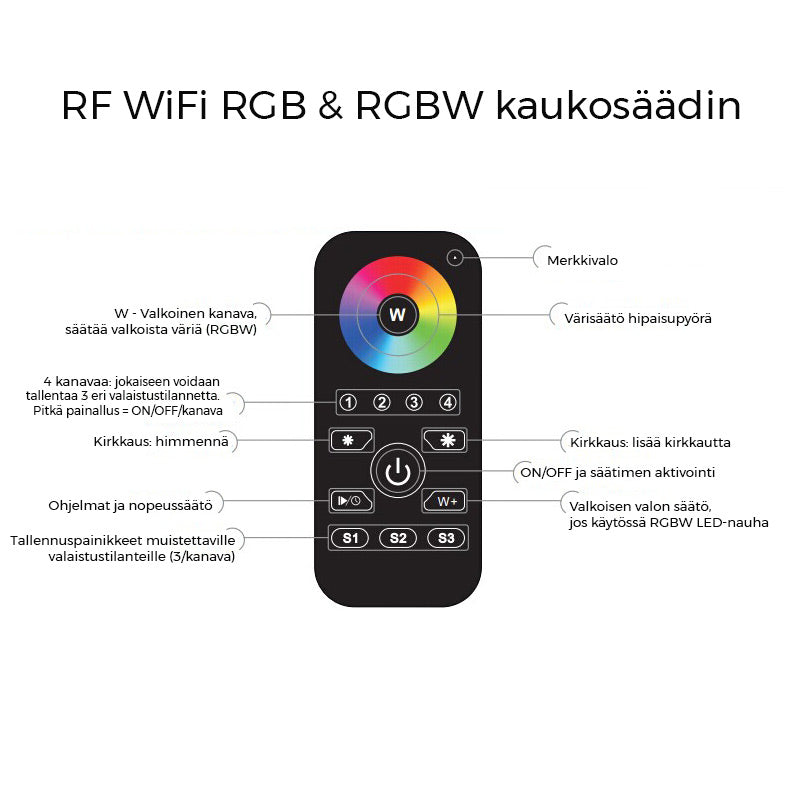

Features

• 4 channels
• Colour change is controlled by a colour wheel with tilt adjustment
• Master control Master On/Off button for all channels
• 12 self-adjusted lighting scenes can be stored in memory, 3 lighting scenes for each channel
• Dimming - channels can be dimmed together or separately
• 10 different colour change programmes
• Speed control for colour change programmes
• Indicator light shows if the remote control is in battery saving mode or active



• Reliable and reliable operation
• Dimming level 0,1-100%
• Operating distance approx.20m, works well through obstacles such as walls
• Lights switch on and off smoothly and gently

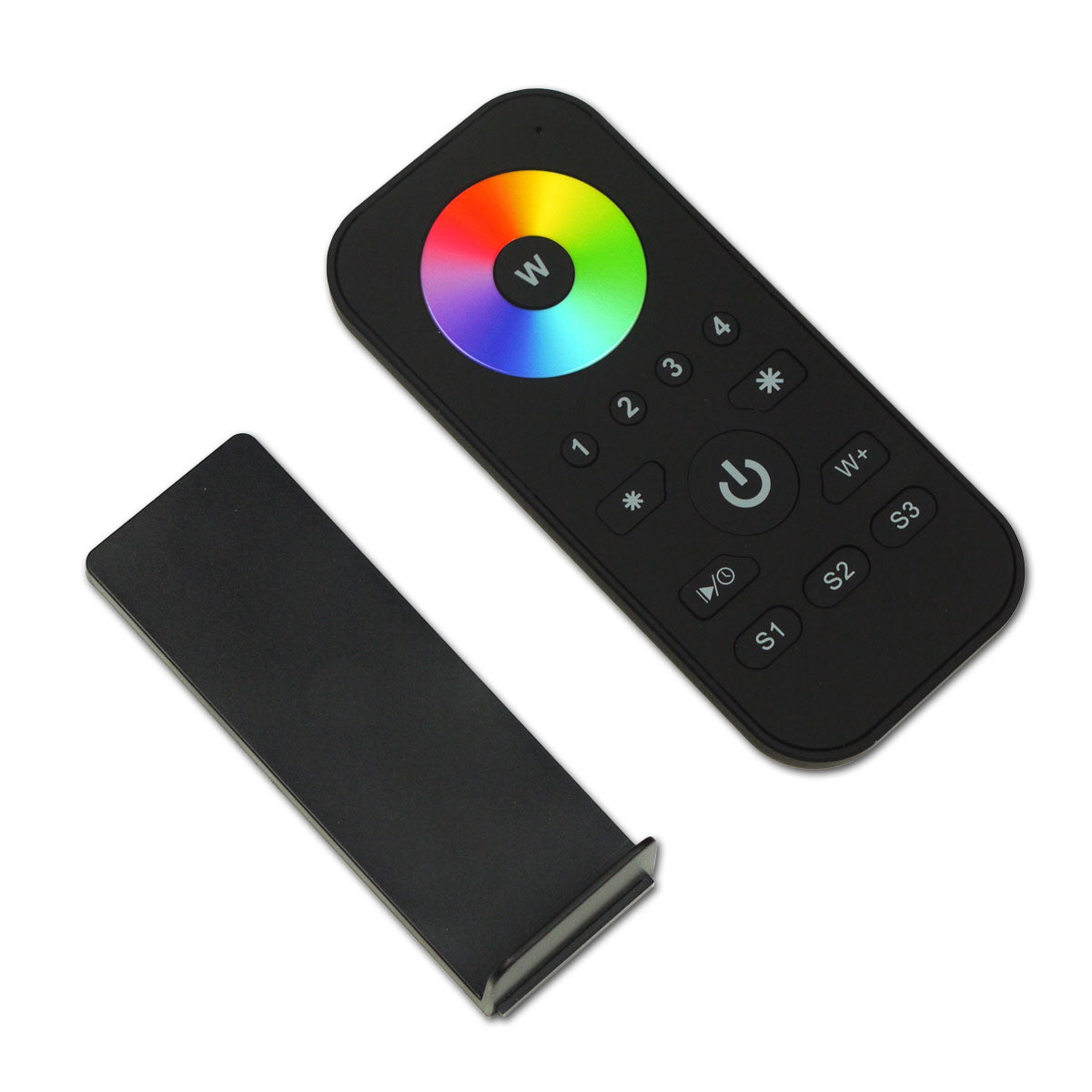

• Magnetic, elegant remote control stand included
• Batteries to be purchased separately: 3 x AAA
• Size: 120 x 55 x 17mm
• Operating temperature: -0°C ...+40°C
• Protection class: IP20
• This remote control can be used to control one or more receivers, unlimited number of receivers per remote control channel.

Disconnection of the receiver and the button/roller controller:

• Press the learning key button for 5 seconds.





Press and hold the key for 5 seconds to activate or deactivate the remote control.
