180W 24V LED power supply HELVAR, constant voltage
- 55 in stock - Products available with fast 1-3 days delivery. These products can be ordered with fast 1-3 days delivery. If you buy more products than we have in stock, the estimated delivery time will be backorder The estimated delivery time for products is approximately 2-4 weeks. - This product is currently out of stock and not available for order. You can ask our customer service by email what timeframe would be available in the future. - The product is currently not immediately available from our stock, but you can place an order and we will deliver the product to you as soon as it arrives. Estimated delivery time backorder The estimated delivery time for products is approximately 2-4 weeks.
Couldn't load pickup availability
SKU (product number):
SKU:LL1x180-CV24
180W 24V efficient HELVAR IP20 LED-constant voltage power supply with 85% efficiency. Overvoltage protection, overheating protection and short-circuit protection.
We recommend these HELVAR transformers especially with our wireless dimmers, i.e. RF WiFi and Smart LED 2.4G and EASY RF 2.4G with. With wireless dimmers, the transformers are completely flicker-free and do not buzz when in use. Available from 30W 24V LED power supply, 75W 24V LED power supply, 120W 24V LED power supply and 180W 24V LED power supply.
Mains voltage ballast 24 VDC LED-applications.
Short circuit and open circuit protection.
Overvoltage protection.
24 V constant output voltage.
Control: ON/OFF
Output protection: SELV < 60, double isolated, double insulated
Luminaire class: I, II
Type: linear, for indoor use
Linear, linear, linear, linear, linear, linear Average life 50 000h
Suitable for use with DALI control unit, LL1-CV-DA
Additional product information
| Output current | 7,5 A |
| Supply voltage | 220...240VAC |
| Output voltage min - max | 24V +-5% |
| Operating temperature | -20...+45 °C |
| Protection class | IP 20 |
| Power | 180W |
| Efficiency | 95% |

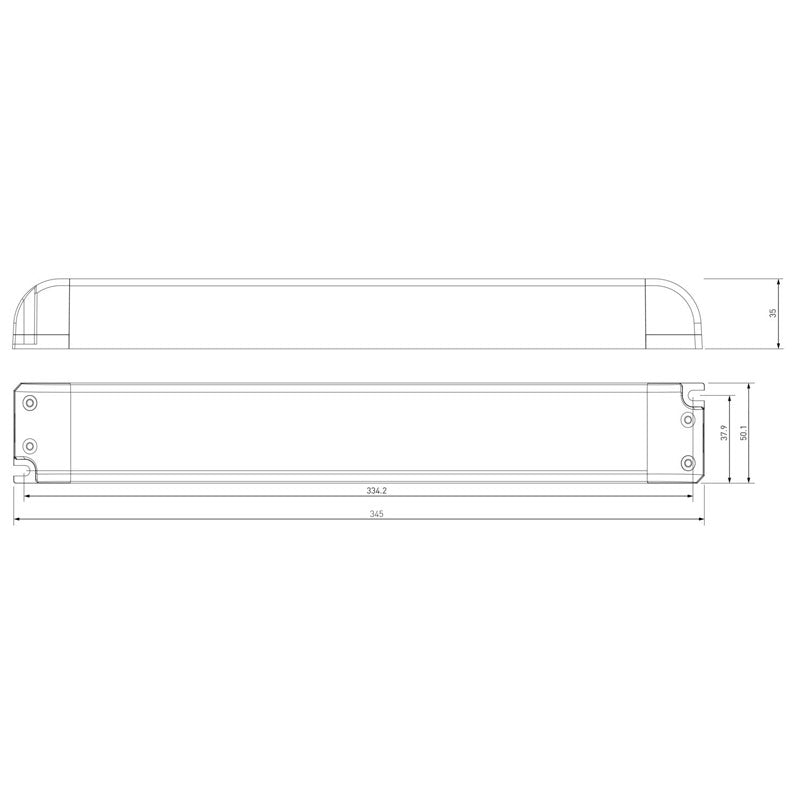

| Dimensions | 343,5 x 50 x 35mm |
| Himmennys | No, but expandable with DALI driver |
| Frequency | 50/60Hz |
| Enclosure material | Plastic |
| Shell colour | White-green |
| Standards | CE, SELV, EN61347-2-13 |
| Standard (EMC) | EN55015 , EN61000-3-2 |
| Conductors / connection type | screw connector |
| Warranty | 3v |
