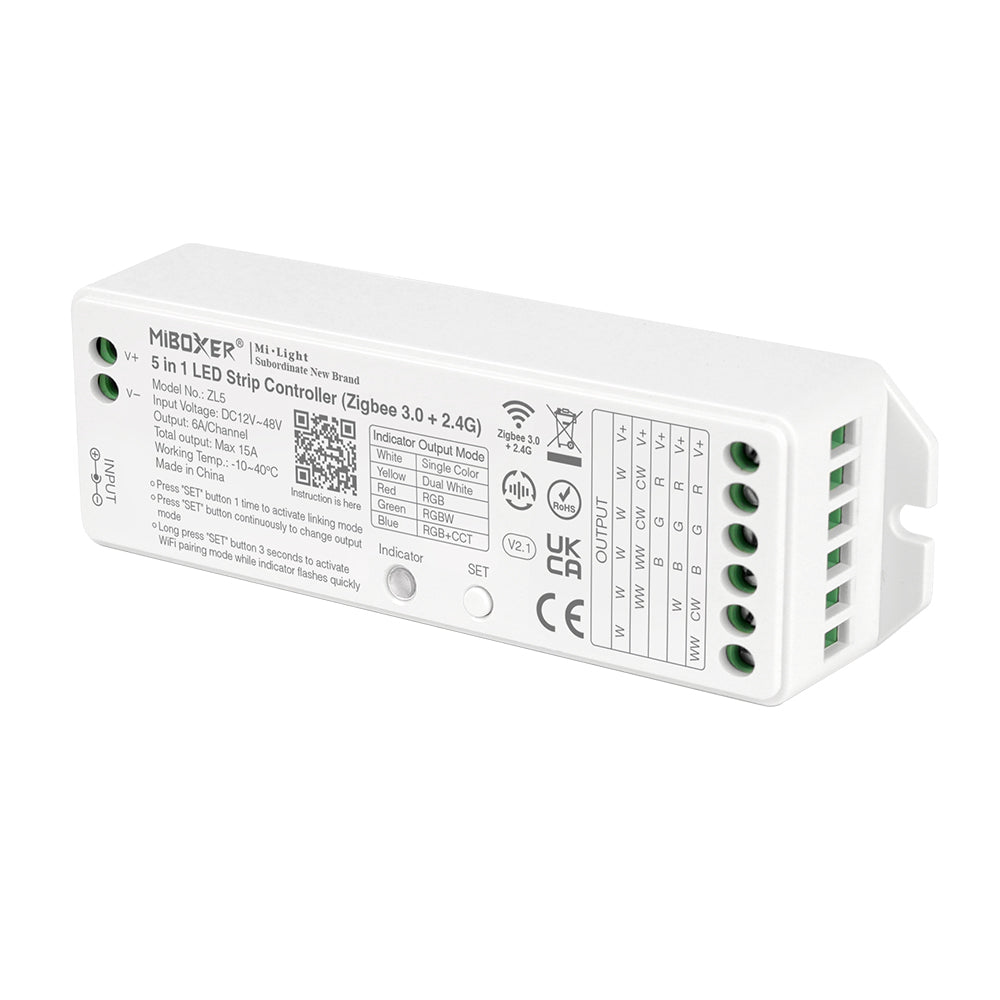

5 in 1 ZigBee LED-controller 12-48V 5-channel for all types LED-tapes + 2.4G control - Miboxer ZL5
- 20 in stock - Products available with fast 1-3 days delivery. These products can be ordered with fast 1-3 days delivery. If you buy more products than we have in stock, the estimated delivery time will be backorder The estimated delivery time for products is approximately 2-4 weeks. - This product is currently out of stock and not available for order. You can ask our customer service by email what timeframe would be available in the future. - The product is currently not immediately available from our stock, but you can place an order and we will deliver the product to you as soon as it arrives. Estimated delivery time backorder The estimated delivery time for products is approximately 2-4 weeks.
Couldn't load pickup availability
SKU (product number):
SKU:ZL5
Zigbee 3.0 compatible wireless LED-controller, suitable for all types of LED strips, i.e. monochrome, RGBW, CCT or RGB+CCT - five channels 5x6A and mode selectable + 2.4G wireless control
Compatible with Zigbee 3.0 system, this Zigbee lighting device can be connected to your Zigbee hub or other Zigbee-enabled bridges such as Amazon Echo plus or Philips Hue (check your device for compatibility). 2.4G SMART LED series wireless controllers!
The controller works with our Zigbee series remote control or other Zigbee products and dimming & colour selection is infinitely variable. The controller can also be controlled via a Zigbee hub from a smartphone, computer or tablet.
The controller is installed on the power supply and LED-tape, i.e. control is from the secondary side. So the power supply does not need to be dimmable, the controller will work with all 12-48V constant voltage monochrome, CCT, RGBW and RGB+CCT LED-tapes. Operating distance max. 30m between two devices. Wide range of light intensity adjustment from 0.1% to 100%.
Power max. 5 x 6A i.e. each channel can be connected to a maximum of 6A for a total of max 15A, the controller can be directly connected to any kind of 12-48V led strip or lamps, colour mode is selected by switches i.e. set the controller to operate either monochrome led strips, RGBW, CCT or RGB+CCT-strips in the correct mode.
A single controller can be controlled by more than one button, for example if you want light control from both doorways in a room.
The controller offers smooth brightness dimming and colour control via PWM output. The lighting can be dimmed and the colour temperature can be adjusted. Multiple zones can be controlled individually or synchronously with the standard receivers in each zone. Built-in dimming patterns are available and are saved even when the lights are switched off.
Features
- 5-channel standard voltage Zigbee LED -controller available 12-48VDC and max. 6A per 5 channels
- Zigbee 2.4G RF technology, Zigbee DIM, CCT, RGBW and RGB+CCT lighting device, compatible with the Zigbee Mesh network. In addition, you can use this controller with 2.4G SMART LED series of wireless controllers!
- Compatibility:Zigbee Universal Gateway/Coordinator, Zigbee RGBW, CCT, DIM lighting controllers
- Enabled by LED-lighting control when the controller is connected to a Zigbee hub and with a Zigbee remote control/controller.
- Supports monochrome, RGBW and CCT LED-lighting (RGBWW, i.e. the colour of the light can be freely adjusted and selected). tunable whitethe desired shade of white from the strip)
- Can be controlled via Zigbee hub by smartphones, computer, etc. Connecting and disconnecting via Zigbee hub.
- Without connecting to the Zigbee hub, can directly connect to one Zigbee compatible controller. When connected to a Zigbee hub, 30 separate controllers can be used.
- Recording option for different scenes
Operating voltage: 12-48V DC.
Power: max. 5 x 6A or 180-720W depending on voltage.
Operating temperature: -20°C ...+50°C
Operating distance: <30m inside the building
Protection class: IP20
Dimensions: 38x 124 x 24mm
3 years warranty
Requires a Zigbee remote or roller controller and a Zigbee hub if required.
