LED dimmer RF WiFi wireless, 1 channel. Push DIM adapter, converts standard light switch to wireless

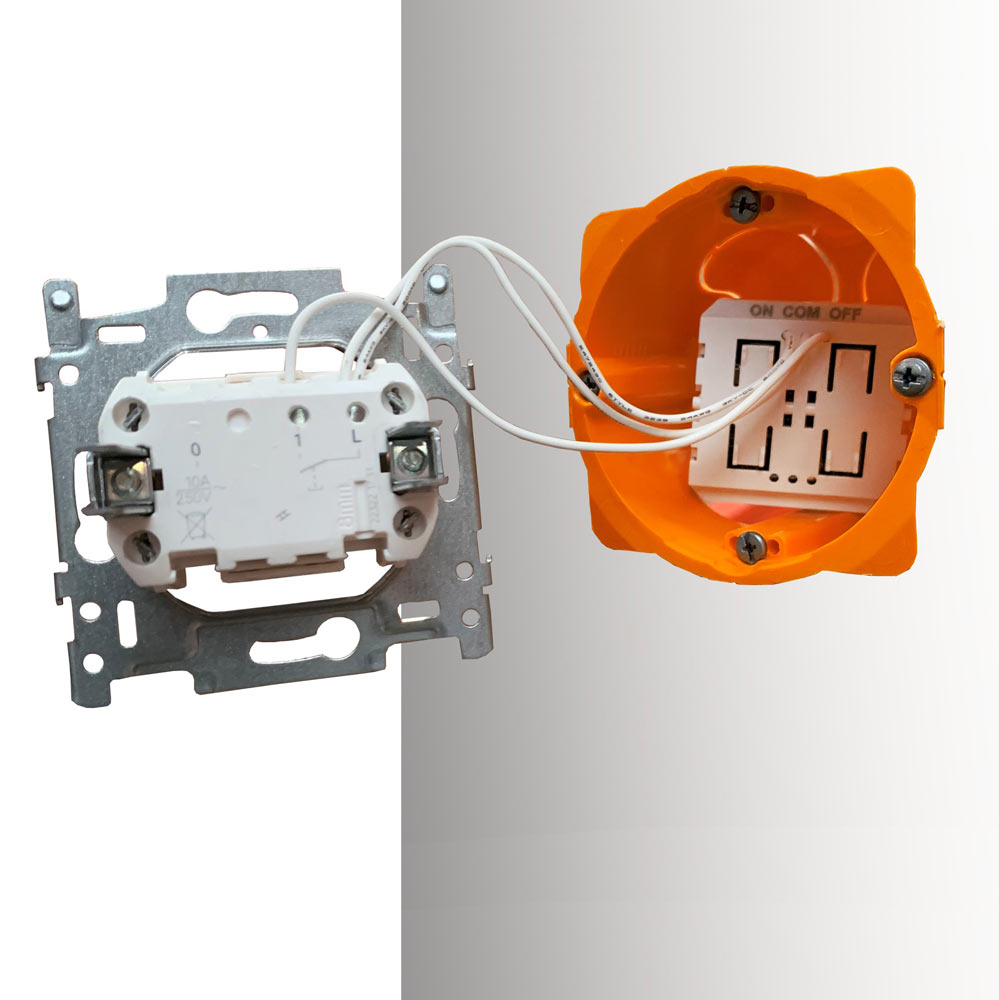

RF WiFi series wireless 1. channel Push DIM adapter with two connectors, converts a normal light switch into a wireless Push DIM or wireless Switch DIM switch. Really easy to install and use with almost any set of power tools - the electrician disassembles the old wiring and installs the spring behind the button and connects the wires! The pushbutton dimmer is compatible with all products in our RF WiFi range.

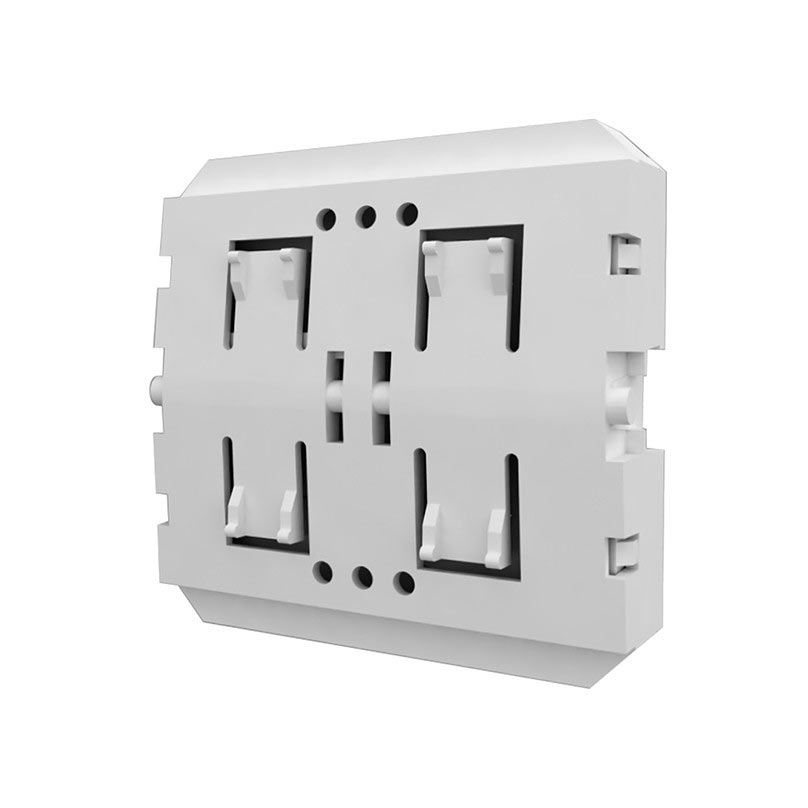

Channel 1 wireless PUSH DIM adapter with two buttons

Converts a normal mechanical switch tip (push button) into an RF transmission. This Push DIM adapter allows you to wirelessly transmit the push button tip of almost any furniture series push button to RF WiFi receivers.

For use with either a single pulse switch or a dual push button switch. Requires 12-24V to operate LED-to control tapes e.g. RF WiFi dimmer/receiver  or 230V control (i.e. for TRIAC dimmable luminaires or TRIAC transformers) 230V TRIAC wireless RF dimmer.

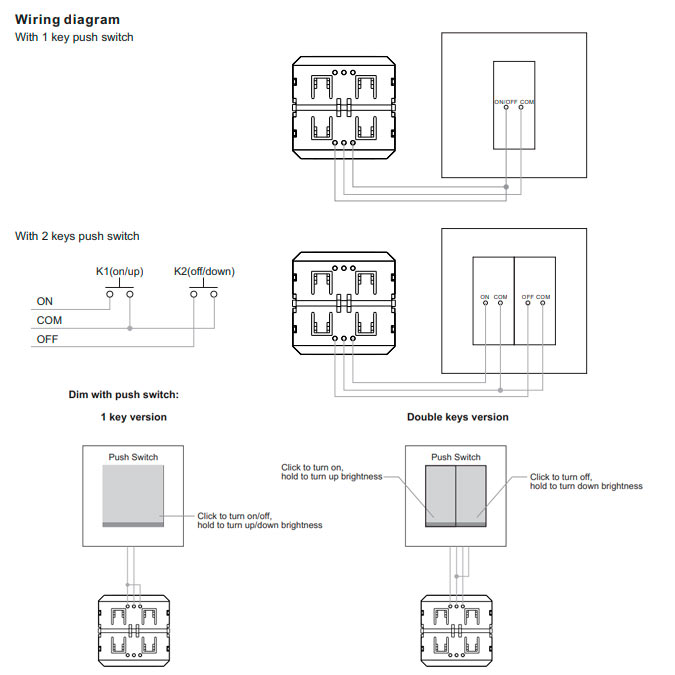

The push button switch works like a normal push dim switch in a single button installation, i.e. a short push on/off and a long push dims/brightens the lights. When connected to two buttons, one button turns the light on and a long press brightens it, the other button turns it off and a long press dims it. Colour white. Can also be installed directly on electrical equipment used in Finland. Easy to retrofit, as the controller does not need any wiring at all, but works with a battery, the wiring is of course connected to the impulse spring circuit breaker. In addition to the wall controller, the dimming of the strip can be controlled from a smartphone if an RF WiFi converter is installed in the same system.

Several receivers (8) can be paired to the controller.

- Operating distance approx. 20m

- IP20

- Powered by 3V battery (CR2430), battery life approx. 2-3v, battery included. The battery can be replaced.

- operating frequency 868MHz

- can be paired with multiple receivers

- white plastic

- size 40 x 40mm, height 11,2mm

Compatible RF WiFi series receivers for this wireless controller:

Monochrome dimmable LED-strips

• 12-24V for dimmable monochrome LED-tapes (max. 96W 12V LED-ribbon or 192W 24V LED-tape) : LED-receiver 1 x 8A LED-receiver 12-36V - RF WiFi
• If you install more LED-tapes, up to 5 x 120W 24V LED-tapes: 4 x 5A for monochrome LED-RF WiFi for ribbons (NOTE! (all ribbons installed in this receiver will work at the same time as one group)
• If you install more LED-ribbons, up to 5 x 1192W 24V LED-tapes: 4 x 8A for monochrome LED-RF WiFi for ribbons (NOTE! (all ribbons installed in this receiver will work at the same time as one group)



230V LED-lamps with transformers and LED-lamps and bulbs such as E27, E14, etc.

• 230V TRIAC for dimmable LED-lamps and dimmable lamps LED-dimmable light bulbs: 230V TRIAC dimmer - RF WiFi
• 230V ON/OFF RELE for all types LED-luminaires: 230V ON/OF RELE - RF WiFi



Connecting the receiver to work with a remote control or button controller:

• Connect LED strip to the receiver
• Turn on the button/remote control by removing the protection between the radiator and the button/regulator, then the button/regulator starts working
• Activate the button/remote control with the ON button and press the receiver's Learning key-button on the receiver. Immediately afterwards, press the button on the controller to which you want to connect the lights
• The connection is complete when LEDthe :s flash

One receiver can be controlled by more than one button (max. 8 buttons), if you want to control the light from both doorways of a room.

Disconnection of receiver and button/remote control:

• Press the learning key button for 5 seconds.

Requires 12-24V to operate. LED-tapes e.g. RF WiFi dimmer/receiver  or 230V control (i.e. for TRIAC dimmable luminaires or TRIAC transformers) 230V TRIAC wireless RF dimmer.

3 years warranty
