RF WiFi LED-remote control dimmer 6-channel.
- Only 4 left in stock! - Products available with fast 1-3 days delivery. These products can be ordered with fast 1-3 days delivery. If you buy more products than we have in stock, the estimated delivery time will be backorder The estimated delivery time for products is approximately 2-4 weeks. - This product is currently out of stock and not available for order. You can ask our customer service by email what timeframe would be available in the future. - The product is currently not immediately available from our stock, but you can place an order and we will deliver the product to you as soon as it arrives. Estimated delivery time backorder The estimated delivery time for products is approximately 2-4 weeks.
Couldn't load pickup availability
SKU (product number):
SKU:RF-2819DIM

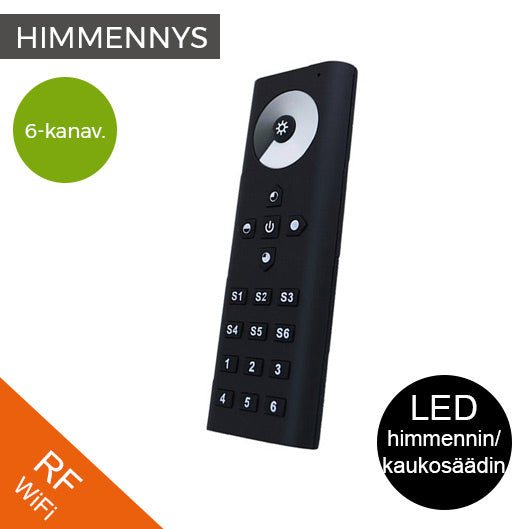

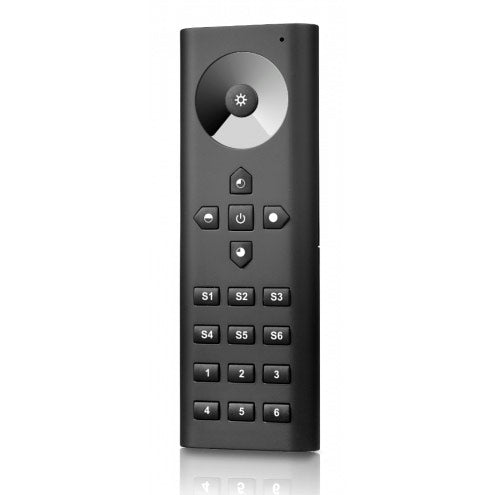

RF WiFi wireless LED-remote control with dimming on six different channels, i.e. 6 groups, plus 6 memory slots
6-channel remote control to control monochromes LED-tapes. The channels can be controlled either together or separately - press 1 and 6 on the remote control to set the appropriate lighting level and then press, for example, memory location S1 to store this lighting setting in memory at location S1, then press S1 to activate the same lighting setting and then you can control both 1 and 6 channels at the same time.
An unlimited number of receivers can be paired for each channel. Each channel can have one Master Receiver. Set the first receiver to master mode, the others to slave mode. This way you can get all controllers to work in sync.
This wireless remote control is compatible with the RF WiFi series of receivers, receivers can be paired to control different channels of this remote control, either one or several. In addition, you can control dimming via wall controllers and WiFi system (requires RF WiFi converter) from a tablet or phone.

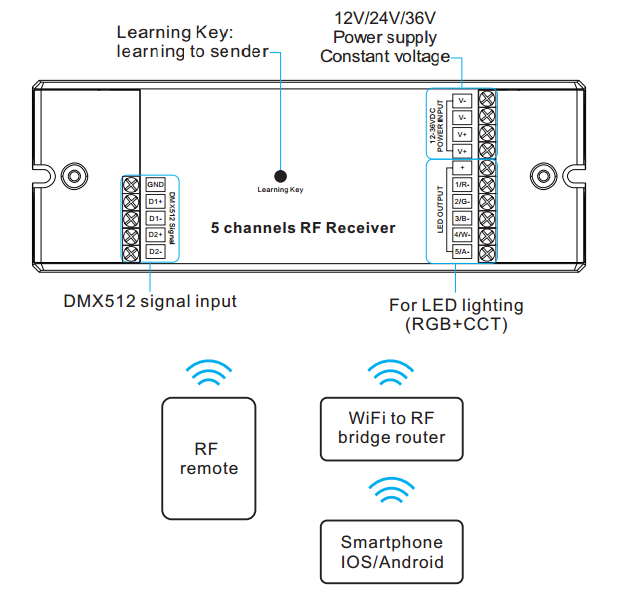

Connecting the receiver to work with the remote control or button:
- Connect to LED strip Connect the receiver to
- Switch on the button/roll control by removing the protection between the radiator and the button/roll control, then the control starts working
- Press the receiver Learning key-button briefly. Immediately afterwards, press one of the buttons on the remote control for the channel (1-6) you want to connect the LEDs to and touch the dimming wheel.
- The connection is complete when LEDthe :lights flash
One receiver can be controlled by more than one button (max. 8 buttons), if you want to control the light from both doorways of a room.
Compatible RF WiFi series receivers for this controller:
Monochrome dimmable LED-strips
- 12-24V for dimmable monochrome LED-tapes (max. 96W 12V LED-ribbon or 192W 24V LED-tape) : LED-receiver 1 x 8A LED-receiver 12-36V - RF WiFi
- If you install more LED-tapes, up to 5 x 120W 24V LED-tapes: 4 x 5A for monochrome LED-RF WiFi for ribbons (NOTE! (all ribbons installed in this receiver will work at the same time as one group)
- If you install more LED-ribbons, up to 5 x 1192W 24V LED-tapes: 4 x 8A for monochrome LED-RF WiFi for ribbons (NOTE! (all ribbons installed in this receiver will work at the same time as one group)
230V LED-lamps with transformers and LED-lamps and bulbs such as E27, E14, etc.
- 230V TRIAC for dimmable LED-lamps and dimmable lamps LED-dimmable light bulbs: 230V TRIAC dimmer - RF WiFi
- 230V ON/OFF RELE for all types LED-luminaires: 230V ON/OF RELE - RF WiFi

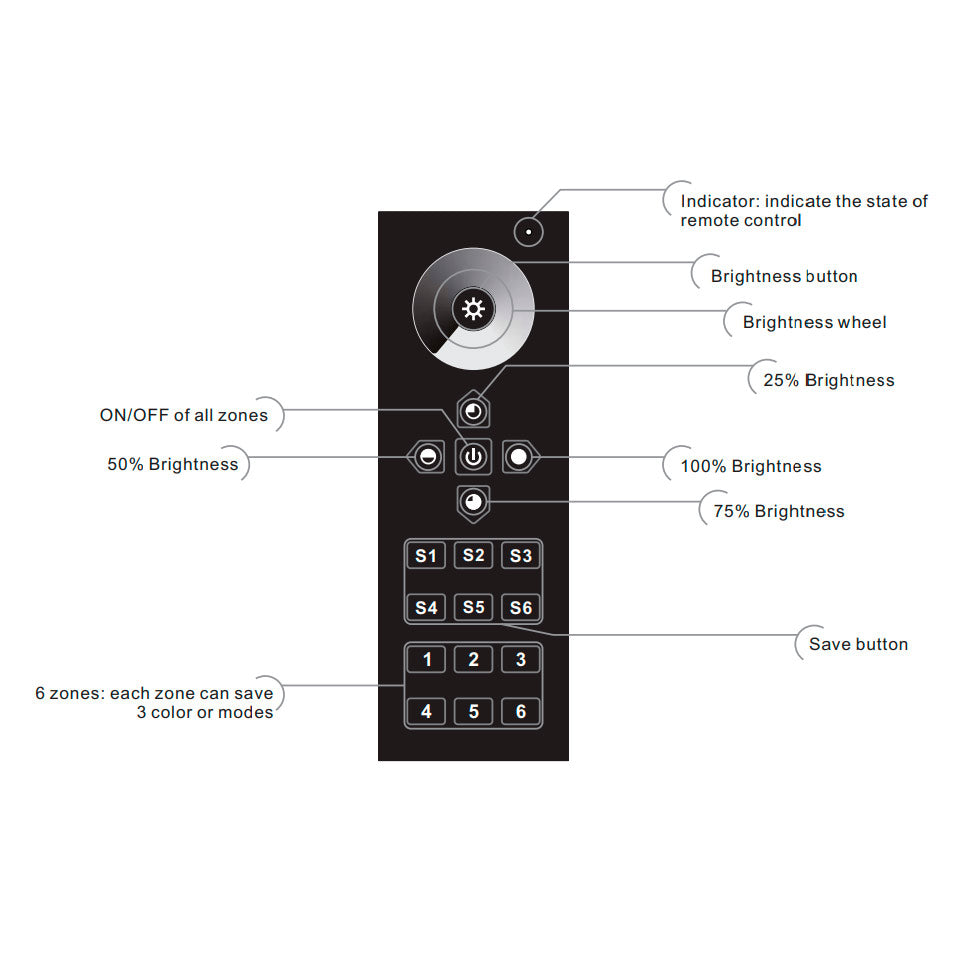

Features
- 6 channels
- Dimming is controlled by a dimming wheel with dimming adjustment
- Master control Master On/Off button for all channels
- 18 self-adjusted lighting scenes can be stored in memory, 3 lighting scenes for each channel
- Dimming - channels can be dimmed together or separately
- 4 ready-to-use button dimming levels: 100%, 75%, 50%, 25%
- The indicator light shows if the remote control is in battery saving mode or active.
- Reliable and reliable operation
- Dimming level 0,1-100%
- Operating distance approx.20m, works well through obstacles such as walls
- Lights switch on and off smoothly and gently

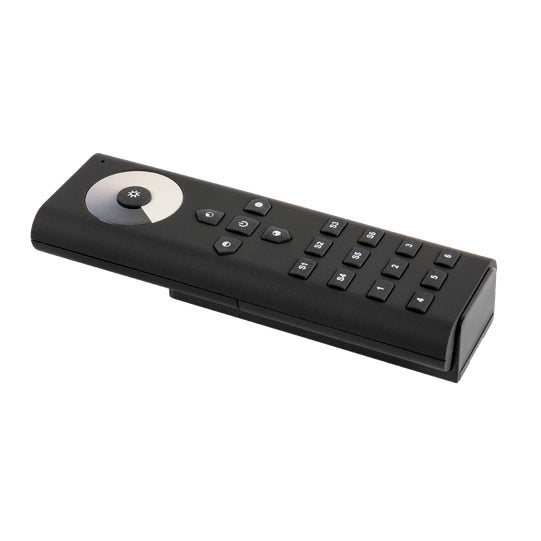

- Magnetic, elegant remote control stand included
- Batteries to be purchased separately: 3 x AAA
- Size: 140 x 48 x 17mm
- Operating temperature: -0°C ...+40°C
- Protection class: IP20
- This remote control can be used to control one or more receivers, unlimited number of receivers per remote control channel
Disconnection of the receiver and the button/roller controller:
- Press the learning key button for 5 seconds.
Press and hold the key for 5 seconds to activate or deactivate the remote control.
