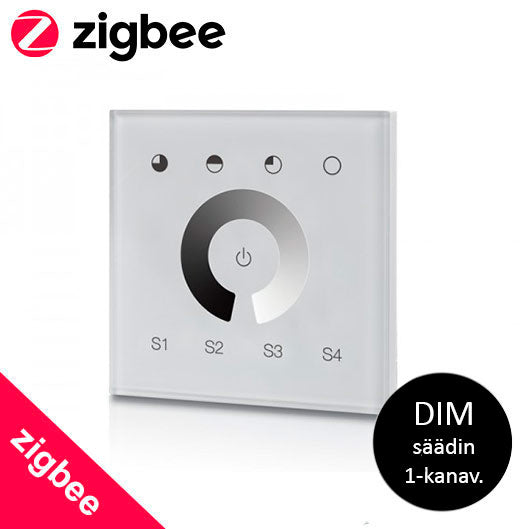

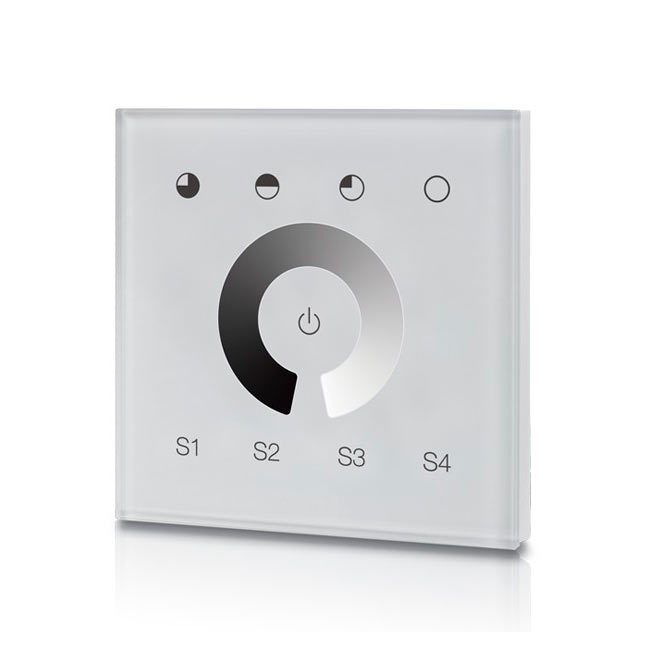

DIM LED-controller ZigBee 230V 1-channel for monochrome LED-tapes
- Only 4 left in stock! - Products available with fast 1-3 days delivery. These products can be ordered with fast 1-3 days delivery. If you buy more products than we have in stock, the estimated delivery time will be backorder The estimated delivery time for products is approximately 2-4 weeks. - This product is currently out of stock and not available for order. You can ask our customer service by email what timeframe would be available in the future. - The product is currently not immediately available from our stock, but you can place an order and we will deliver the product to you as soon as it arrives. Estimated delivery time backorder The estimated delivery time for products is approximately 2-4 weeks.
Couldn't load pickup availability
SKU (product number):
SKU:SR-ZG9001T-DIM
ZigBee compatible wireless, flush-mountable LED-controller with one channel for monochrome LED-tapes
Compatible with the ZigBee system, this ZigBee can be connected to a ZigBee Bridge or any other bridge with ZigBee Master capability (check compatibility with your Master device if you are not using one of our own series). Also requires Zigbee DIM controller.
In addition to the controller, the lighting can also be controlled via the Master device using a smartphone, computer or tablet.
The controller is flush-mounted in the wall and requires a 230V AC connection. Operating distance max. 30m between two devices.
Single channel, i.e. the controller can control a single lighting group, each of which can contain several controllers and luminaires. There can also be more than one controller per lighting group.
Features
- Zigbee 2.4G RF technology, Zigbee Single Colour lighting device, compatible with Zigbee Mesh network
- Compatible with Zigbee Universal Gateway/Coordinator, Zigbee Single Colour lighting controllers.
- Enables single colour LED-lighting when the controller is connected to a Zigbee hub and a Zigbee remote controller/controller.
- Supports LED-lighting (dimming)
- Can be controlled via Zigbee hub by smartphones, computer, etc. Connect and disconnect via Zigbee hub.
- Without connecting to the Zigbee hub, can directly connect to one Zigbee compatible controller. When connected to a Zigbee hub, 30 separate controllers can be used.
- 1-channel Zigbee LED -controller
- Control monochrome LED-strips while the controller is connected to the Master device and, if you wish, via other Zigbee controllers..
- Pressing the button once turns the lights off and on, pressing it for a long time dims and brightens the light
- Dimming
- Indicator light
- Material plastic - tempered glass on top
- Flush-mounted - requires 230 V AC connection to work, however the light control signal is wireless.
Operating voltage: 230V AC
Operating temperature: -20°C ...+50°C
Operating distance: <30m inside the building
Protection class: IP20
Dimensions: 86 x 86 x 26.1mm
3 years warranty
Requires 86 x 86 cm - one year guarantee Zigbee DIM controller and a Zigbee Master device or bridge.
