LED-regulator/dimmer for monochrome LED-2-channel - ZigBee GREEN POWER
- - Products available with fast 1-3 days delivery. These products can be ordered with fast 1-3 days delivery. If you buy more products than we have in stock, the estimated delivery time will be backorder The estimated delivery time for products is approximately 2-4 weeks. - This product is currently out of stock and not available for order. You can ask our customer service by email what timeframe would be available in the future. - The product is currently not immediately available from our stock, but you can place an order and we will deliver the product to you as soon as it arrives. Estimated delivery time backorder The estimated delivery time for products is approximately 2-4 weeks.
SKU (product number):
SKU:SR-ZGP2801K4-DIM-G2

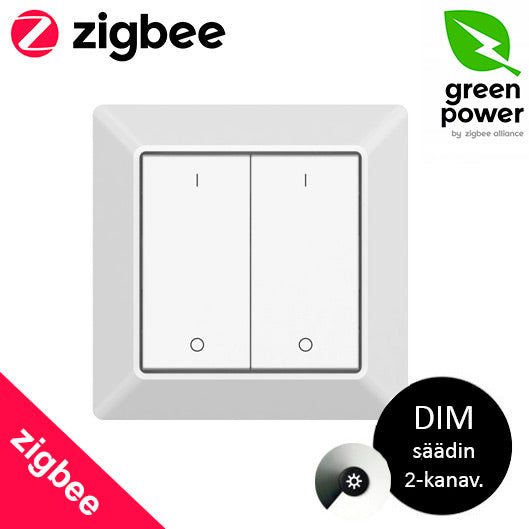

Zigbee 3.0 GREEN ENERGY compatible wireless 2-channel surface mount LED-regulator/dimmer for monochrome LED-ribbons and lights
Compatible with the Zigbee 3.0 system, this Zigbee lighting device can be connected directly to a zigbee controller (check your device for compatibility). GREEN POWER device meaning it doesn't need a separate battery but charges itself with each push of the button with enough energy to run without batteries.
Suitable for use with, for example DIM Zigbee controllers (2 pcs, i.e. one controller always works as one group, if you want to control two separate LED strips separately, you need separate controllers for each) or 230V Zigbee TRIAC dimmer with a Zigribe! A short press on the buttons will change the mode quickly, a long press will change it slowly. The controller connects directly to the Zigbee controller without any additional accessories, but if you want to control the lights with your mobile phone, you need a Zigbee bridge.
Instructions for use:

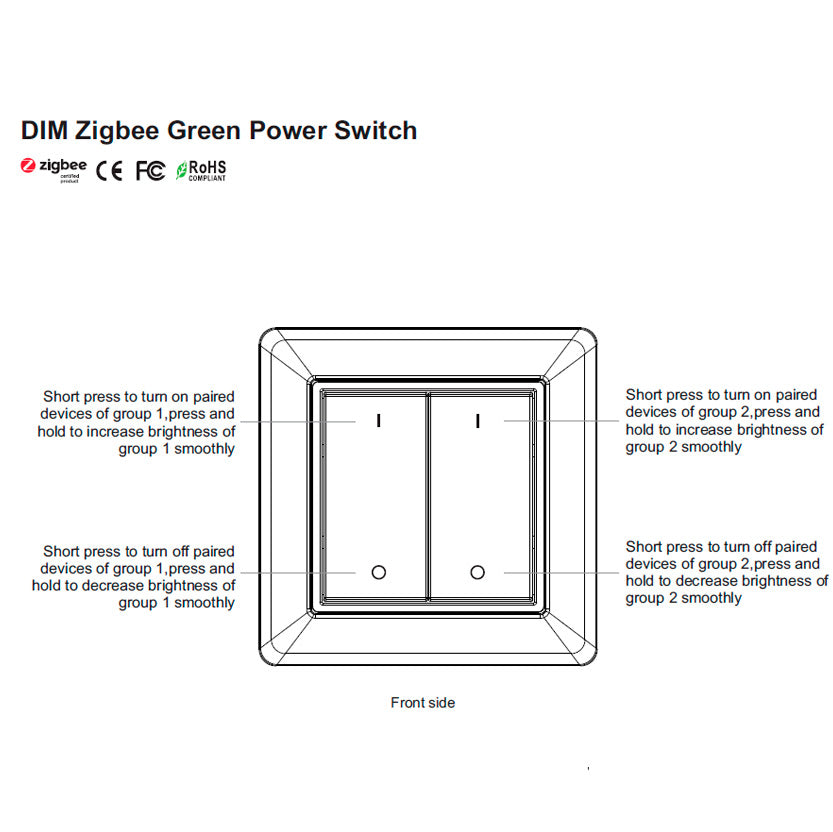

2 x ON/OFF buttons, multiple controllers can be installed on each of them
A short press on the OFF button turns the lights off, a long press dims the lights.
A short press on the ON button turns the lights on, a long press brightens the lights.
Features
- Controls ZIGBEE DIM strips and lamps, on/off and dimming, also works in dimming mode
- Supports monochrome DIM LED-luminaires (on/off and dimming)
- Can be controlled via Zigbee hub by smartphones, PC, etc. Connect and disconnect via Zigbee hub.
- Without connecting to the Zigbee hub, can directly connect to one Zigbee compatible controller. When connected to a Zigbee hub, 30 separate controllers can be used.
GREEN ENERGY device, works kinetically without batteries
Operating temperature: -20°C ...+50°C
Operating distance: <30m inside the building
Protection class: IP20
Dimensions: 81 x 81 x 13mm
2 years warranty
Requires a Zigbee receiver or Zigbee lights and, if required, a Zigbee hub such as Philips Hue bridge or Amazon Alexa Echo Plus.
How to connect
Connect FIRST LED-controller/receiver to the Philips Hue system (when you switch off the controller/receiver and switch it on again, the device goes into connection mode and by selecting "connect luminaire" in the Philips Hue system you can then connect it for 15 seconds).
When the controller is connected to the Philips Hue system, you can connect the Green Power controller directly to the controller. The Green power controller is not connected to the Philips Hue system itself, but directly controls the controller.
- From the LED strip controller/receiver, press the Prog button 4 times or switch the lights on again, e.g. by removing the plug from the socket 4 times. We recommend switching the lights on and off 4 times, it seems to work more efficiently here.
- Choose one button on the wall controller that you press, it doesn't matter which button, as long as it's the same all the time.
Press the same button for at least 7 seconds.
Press the same button briefly.
Press the same button for at least 7 seconds.
See if the lights flash twice. If not, press the same button again briefly and see if the lights flash. Repeat this until the lights finally flash, i.e. briefly press the same button and wait a few seconds to see if the lights flash. There are about 15 channels so you may have to press the button several times until the lights flash.
When the lights flash press another button which will stop the installation and now the lights will work from your controller!
