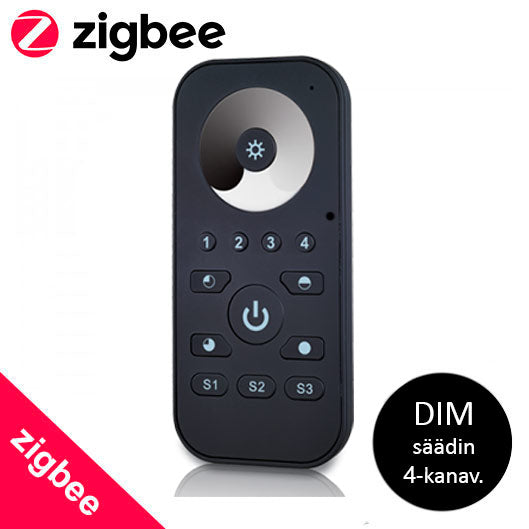

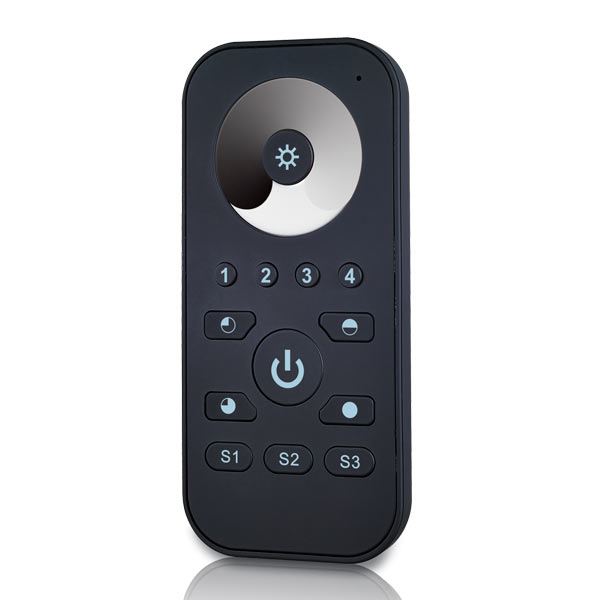

DIM LED remote control ZigBee 4-channel for monochrome LED strips

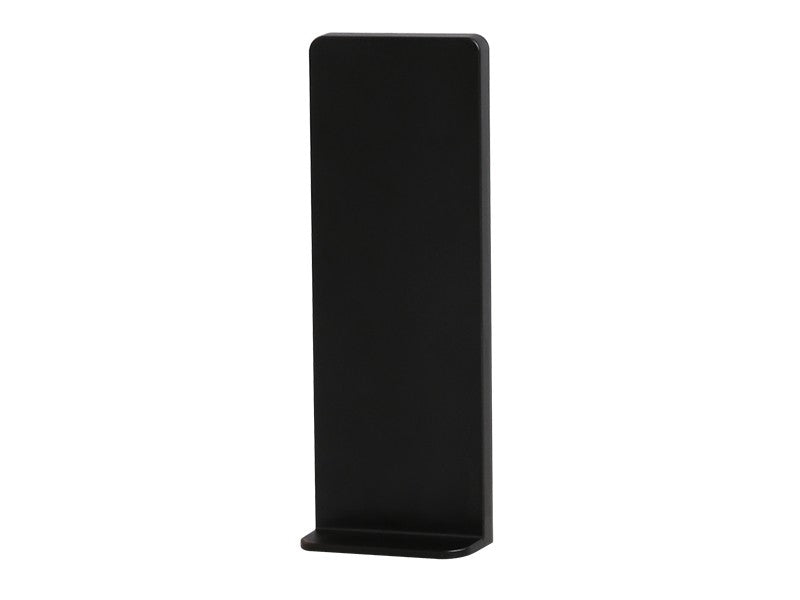

ZigBee wireless remote control for single-colour LED strips, controlling up to four separate lighting groups. Includes a wall bracket to which the remote attaches magnetically. Control can also take place via the ZigBee network using a computer, phone or tablet. Requires a ZigBee Master device or ZigBee bridge and a ZigBee DIM controller to operate.

ZigBee 3.0 compatible wireless remote control with four channels for single-colour LED strips

Compatible with the ZigBee system, this remote can be integrated using a ZigBee bridge or another bridge with ZigBee master functionality. (Check compatibility with your own Master device if you are not using a Master from our range.) Also requires a ZigBee DIM controller to operate.

The controller works steplessly. In addition to the remote, lighting can also be controlled via the Master device using a smartphone, computer or tablet.

The controller is flush-mounted into the wall and requires a 230V AC connection. Operating distance max. 30m between two devices.

Four-channel, meaning the remote can control four separate lighting groups, each of which may contain multiple controllers and luminaires. There can also be multiple remotes per lighting group.

Features

• ZigBee 2.4G RF technology, ZigBee Single Colour lighting device, compatible with ZigBee Mesh network
• Compatibility: ZigBee Universal Gateway/Coordinator, ZigBee Single Colour lighting controllers
• Enables control of single-colour LED lighting when the controller is connected to a ZigBee hub and with a ZigBee remote control/controller.
• Supports LED lighting (dimmable)
• Can be controlled via ZigBee hub with smartphones, computer etc. Pairing and unpairing via ZigBee hub.
• Without connection to a ZigBee hub, can directly connect to one ZigBee compatible controller. When connected to a ZigBee hub, can use 30 separate controllers.

• 4 channels in the ZigBee LED controller
• Controls single-colour LED strips when the controller is connected to a Master device and, if desired, also via other ZigBee controllers.

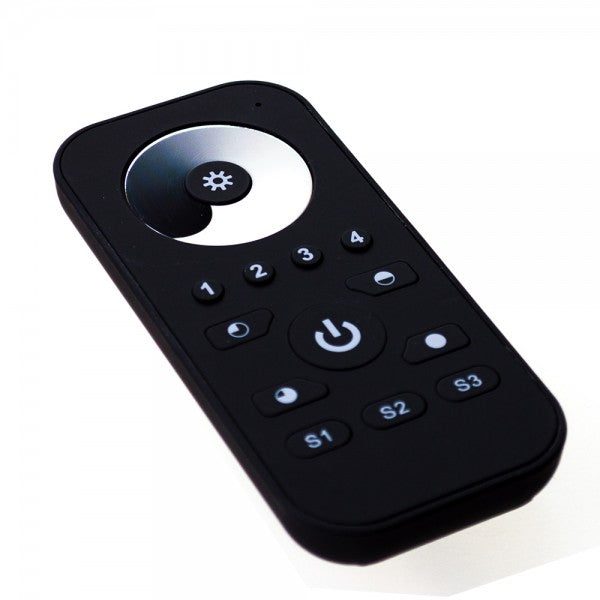

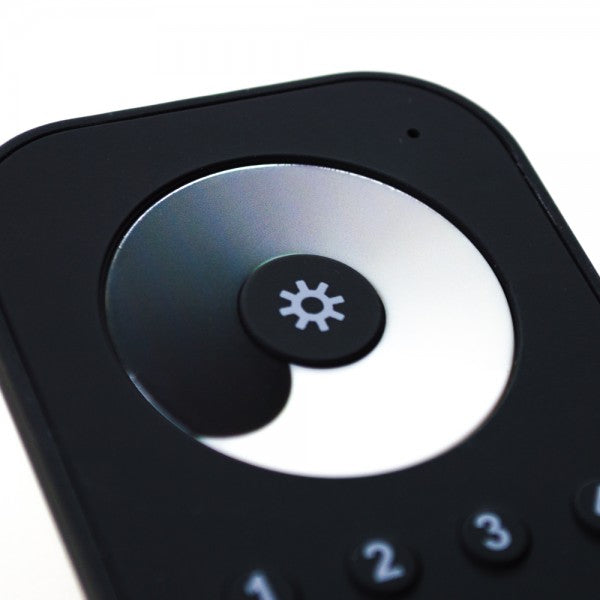

• Dimming wheel with touch function, three memory locations, master on/off button and four quick-select buttons for dimming level
• Dimming
• Indicator light
• Plastic material

Operating voltage:

• 4.5V (3×AAA batteries)

Operating temperature: -20°C ...+50°C

Operating range: <30m indoors

Protection rating: IP20

Dimensions: 120 × 55 × 17mm

3-year warranty

Requires a ZigBee DIM controller and a ZigBee Master device or bridge to operate.
