LED-regulator/dimmer for monochrome LED-1 channel - ZigBee GREEN POWER

Zigbee DIM GREEN ENERGY wireless DIM dimmer/regulator (for monochrome LED-tapes & LED-lamps), surface mountable and compact - like a normal light switch! Requires a Zigbee receiver like this one to work ZigBee DIM controller, and if you want to control the lights via a smartphone, a Zigbee hub like Philips Hue or Amazon Echo Plus . No batteries, recharges itself automatically with kinetic pushes.

Zigbee 3.0 GREEN ENERGY compatible wireless 1-channel surface-mountable LED-dimmer/regulator for monochrome LED-tapes and lights

Compatible with Zigbee 3.0 system, this Zigbee lighting device can be connected to your Zigbee hub or another Zigbee-enabled bridge such as Amazon Echo plus or Philips Hue (check your device for compatibility). GREEN POWER device, i.e. it does not need a separate battery but charges itself with each push of the button with enough energy to run without batteries.

Suitable for use with, for example DIM Zigbee controllers or 230V Zigbee TRIAC dimmer with! Press the buttons briefly to change modes quickly, press them for a long time to change modes slowly. The controller can be connected directly to a Zigbee controller without any additional accessories, but if you want to control the lights with your mobile phone, you need a Zigbee bridge.

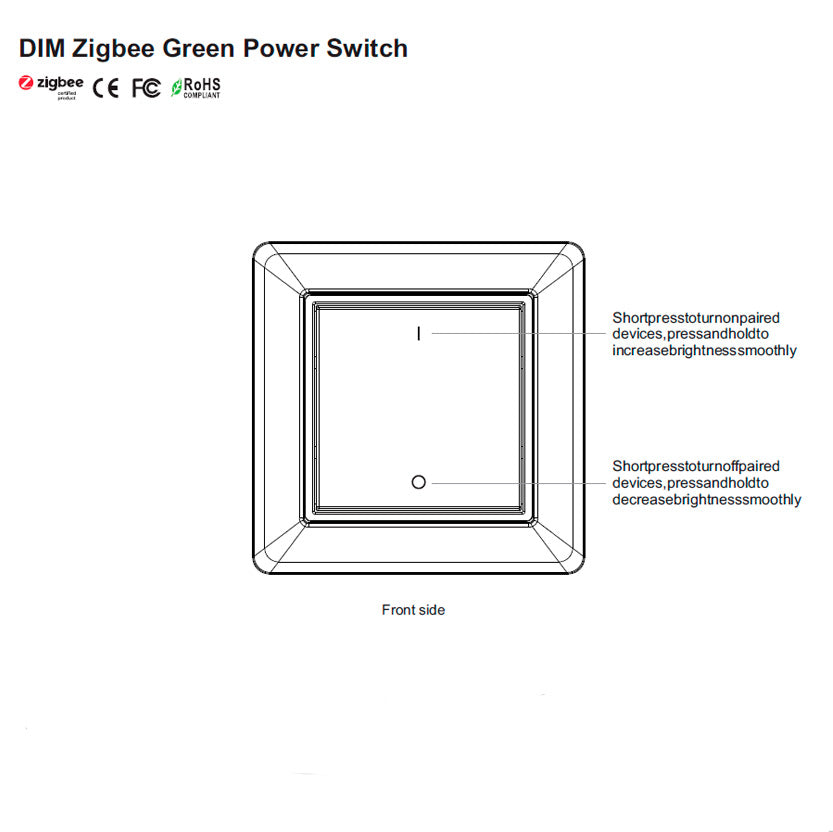

Instructions for use:

ON/OFF button.

A short press on the OFF button turns the lights off, a long press dims the lights.

A short press on the ON button turns the lights on, a long press brightens the lights.

Features

• Controls ZIGBEE DIM strips and lamps, on/off and dimming, also works in dimming mode
• Zigbee 2.4G RF technology, Zigbee DIM lighting device, compatible with Zigbee Mesh network
• Compatibility: Zigbee Universal Gateway/Coordinator, Zigbee DIM lighting controllers.
• Enables DIM LED-lighting when the controller is connected to a Zigbee hub and with a Zigbee DIM remote controller/controller.
• Supports monochrome DIM LED-lighting (on/off and dimming)
• Can be controlled via Zigbee hub by smartphones, PC, etc. Connect and disconnect via Zigbee hub.
• Without connecting to the Zigbee hub, can directly connect to one Zigbee compatible controller. When connected to a Zigbee hub, 30 separate controllers can be used.

GREEN ENERGY device, works kinetically without batteries

Operating temperature: -20°C ...+50°C

Operating distance: <30m inside the building

Protection class: IP20

Dimensions: 81 x 81 x 13mm

2 years warranty

Requires a Zigbee receiver or Zigbee lights and, if required, a Zigbee hub such as Philips Hue bridge or Amazon Alexa Echo Plus.



How to connect

Connect FIRST LED-controller/receiver to the Philips Hue system (when you switch off the controller/receiver and switch it on again, the device goes into connection mode and by selecting "connect luminaire" in the Philips Hue system you can then connect it for 15 seconds).

When the controller is connected to the Philips Hue system, you can connect the Green Power controller directly to the controller. The Green power controller is not connected to the Philips Hue system itself, but directly controls the controller.



1. From the LED strip controller/receiver, press the Prog button 4 times or switch the lights on again, e.g. by removing the plug from the socket 4 times. We recommend switching the lights on and off 4 times, it seems to work more efficiently here.



1. Choose one button on the wall controller that you press, it doesn't matter which button, as long as it's the same all the time.



Press the same button for at least 7 seconds.

Press the same button briefly.

Press the same button for at least 7 seconds.



See if the lights flash twice. If not, press the same button again briefly and see if the lights flash. Repeat this until the lights finally flash, i.e. briefly press the same button and wait a few seconds to see if the lights flash. There are about 15 channels so you may have to press the button several times until the lights flash.



When the lights flash, press another button which will stop the installation and now the lights will work from your controller!
