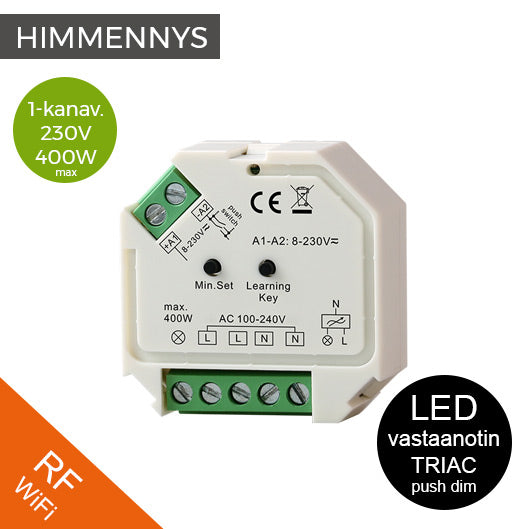

Triac dimmer/receiver Push Dim 230V max. 400W, RF WiFi

The compact RF TRIAC receiver works with all kinds of TRIAC dimmable power supplies and TRIAC dimmable power supplies. LED-and dimmable lighting fixtures. LED-dimmable light bulbs, wireless or push dim control. 230V, 1 channel, max. 400W output, LEDs max. 200W.

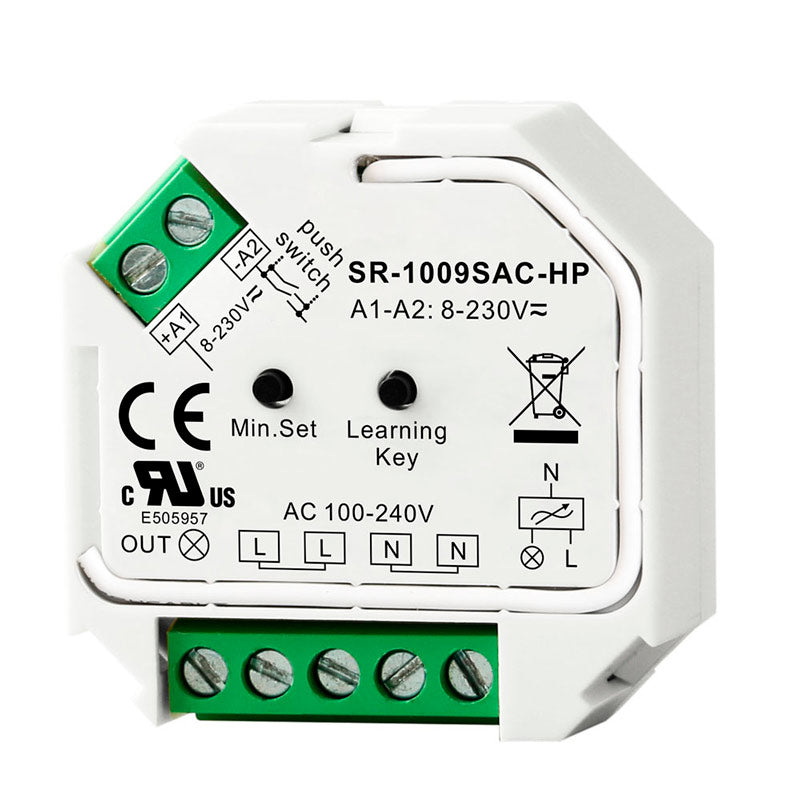

Compact RF TRIAC receiver for wireless or push dim control of TRIAC dimmable power supplies. The receiver is used to connect luminaires with TRIAC dimmable power supply as well as dimmable LED-lamps or bulbs. The luminaires can thus be controlled wirelessly by remote or wall controls and, if desired, by fixed spring-return switches. By adding a separate RF WiFi converter to the system, the dimmer can also be WiFi controlled via APP on IOS or Android devices.

The required wireless remote control or push button is purchased separately. Connects to the primary side, disconnects power from the power supply. The 230VAC Triac roller controller is not suitable for connection, i.e. it is excluded from the connection or bypassed. The device also supports the PUSH DIM feature. To use the PUSH DIM feature, please purchase the necessary buttons from your preferred supplier (not wireless). They are not included in our range.

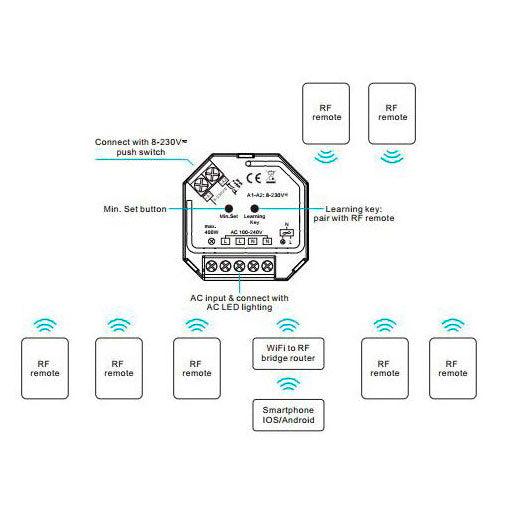

The receiver can be paired with up to 8 wireless dimmers and controllers. One receiver can be controlled by 8 different dimmers or controllers wirelessly, even from different rooms.

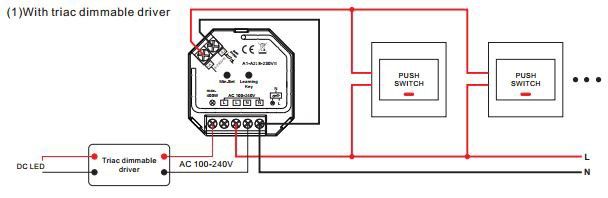

In addition to wireless control, an unlimited number of spring-return switches can be connected to the receiver.

Key features

• AC phase cut-off with RF control and PUSH DIM dimming function
• Safe and reliable complete isolation technology
• 100-240VAC input and 100-240VAC output
• 1 channel, maximum 400W output
• Triac dimmable and Mosfet dimmable
• Rear edge dimming
• Compatible with remote controls and controllers
• Can be WiFi controlled via APP on IOS or Android systems, Easy lighting - if using WiFi converter
• Innovative minimum brightness control function
• Dimming and switching of individual colours to dimmable LED-lamps, traditional incandescent lamps and halogen lights
• Input and output with screws, safe and reliable
• Small size, easy to install in a junction box
• Dimensions: 45.5 x 45.5 x 20.3mm.
• Operating temperature: -20 +50°C
• Protection class: IP20
• Radio frequency available: 869.5/434/916.5MHz
