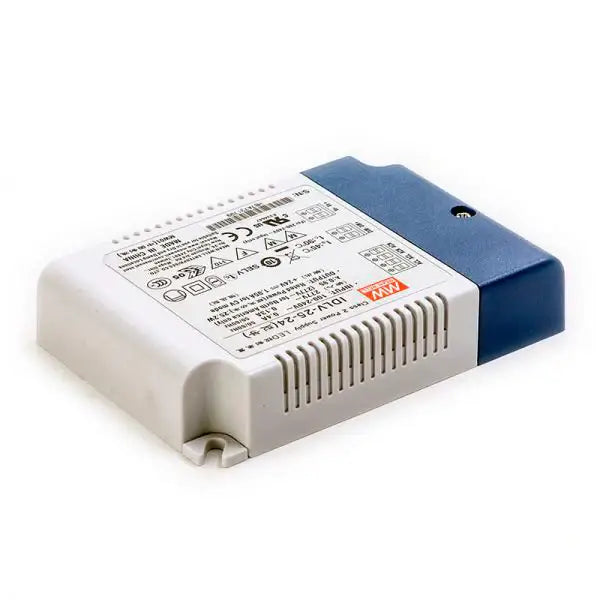

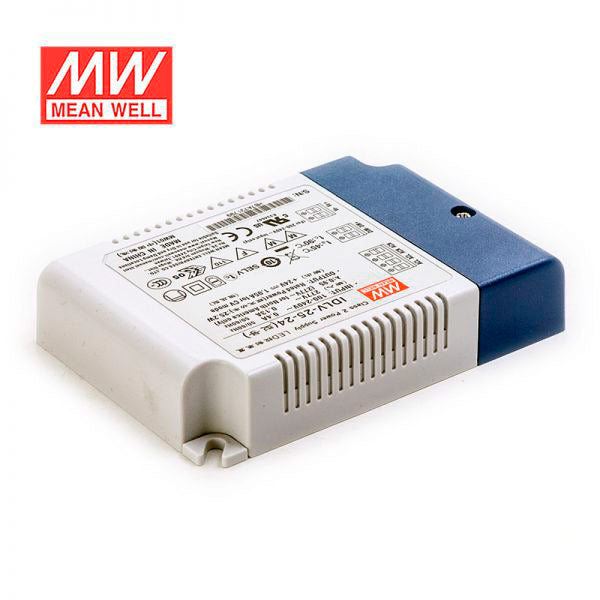

21.6W 12V, 1-10V & PWM dimmable, IDLV-25-12 LED power supply, Mean Well
- Only 14 left in stock! - Products available with fast 1-3 days delivery. These products can be ordered with fast 1-3 days delivery. If you buy more products than we have in stock, the estimated delivery time will be backorder The estimated delivery time for products is approximately 2-4 weeks. - This product is currently out of stock and not available for order. You can ask our customer service by email what timeframe would be available in the future. - The product is currently not immediately available from our stock, but you can place an order and we will deliver the product to you as soon as it arrives. Estimated delivery time backorder The estimated delivery time for products is approximately 2-4 weeks.
Couldn't load pickup availability
SKU (product number):
SKU:IDLV-25-12
| Input voltage | 100-240V |
| Input frequency | 47/63Hz |
| Input voltage | 0.16A / 230VAC |
| Power factor | ≥ 0.95 (@230VAC. at full load) |
| Output voltage | 12VDC |
| Output current | 1,8A max. |
| Load | 21,6W max. |
| Efficiency | ≥ 80% (@230VAC. at full load) |
| Power without load | |
| Connection type: | Connectors |
| Protection class | IP20 |
| Insulation class | Class II, SELV |
| Surface temperature (Tc.) | +80°C max. |
| Operating temperature (Ta.) | -20°C~+90°C |
| Lifetime | ≥ 62000 hours (@ 25°C, full load) |
| Protection | short circuit / overload / temperature |
| Standard (Safety) | Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level( ),EAC TP TC 020 |
| Standard (EMC) | Compliance to EN55015, EN61000-3-2 Class C ( ) ; EN61000-3-3,GB17743,GB17625.1,EAC TP TC 020 |
| Certificates / RoHS | CE, RoHS (2002/95/EC) |

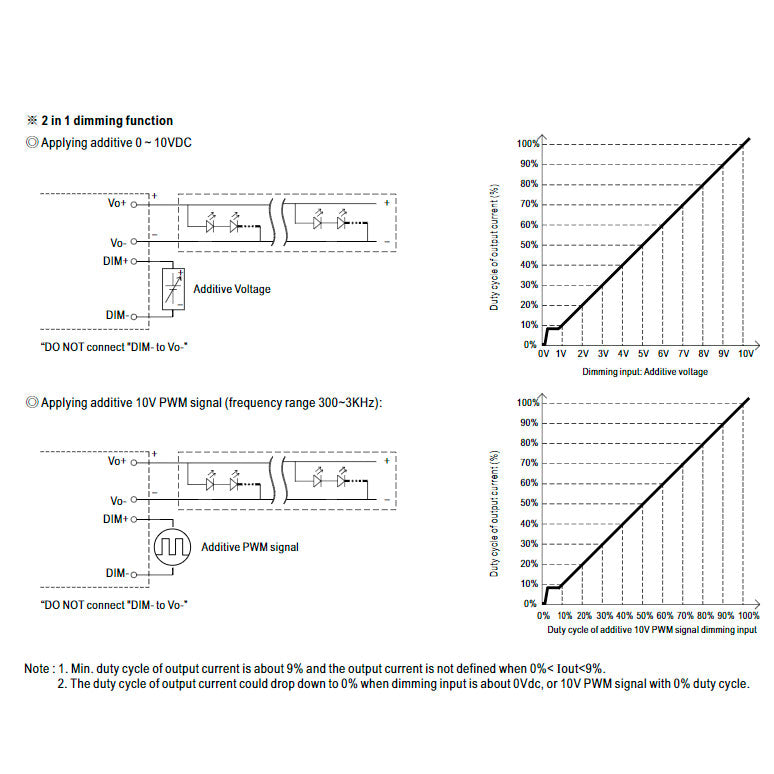

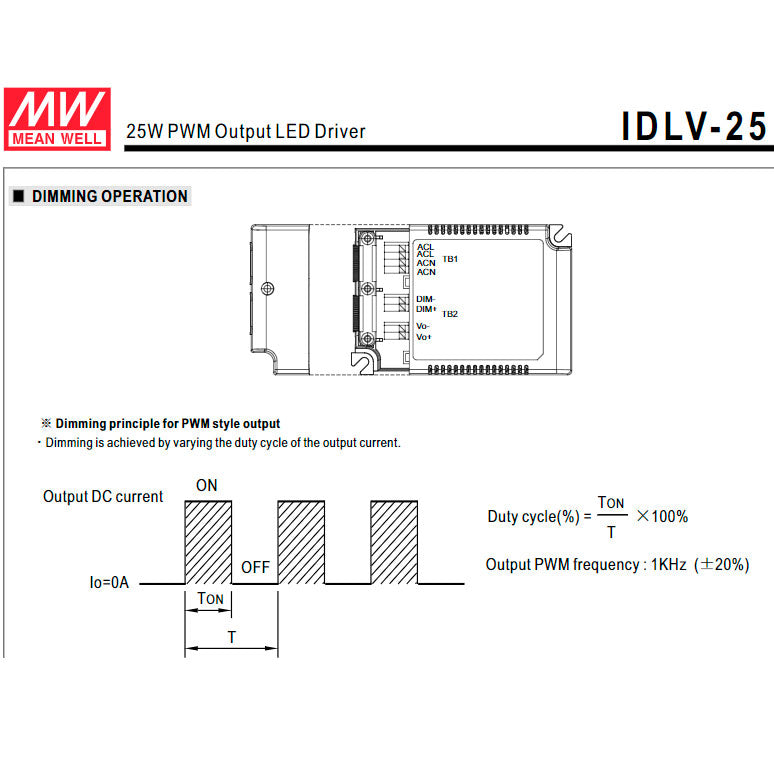

| Vimmennys | 2 in 1 dimming function (1~10VDC, 10V PWM signal) |
